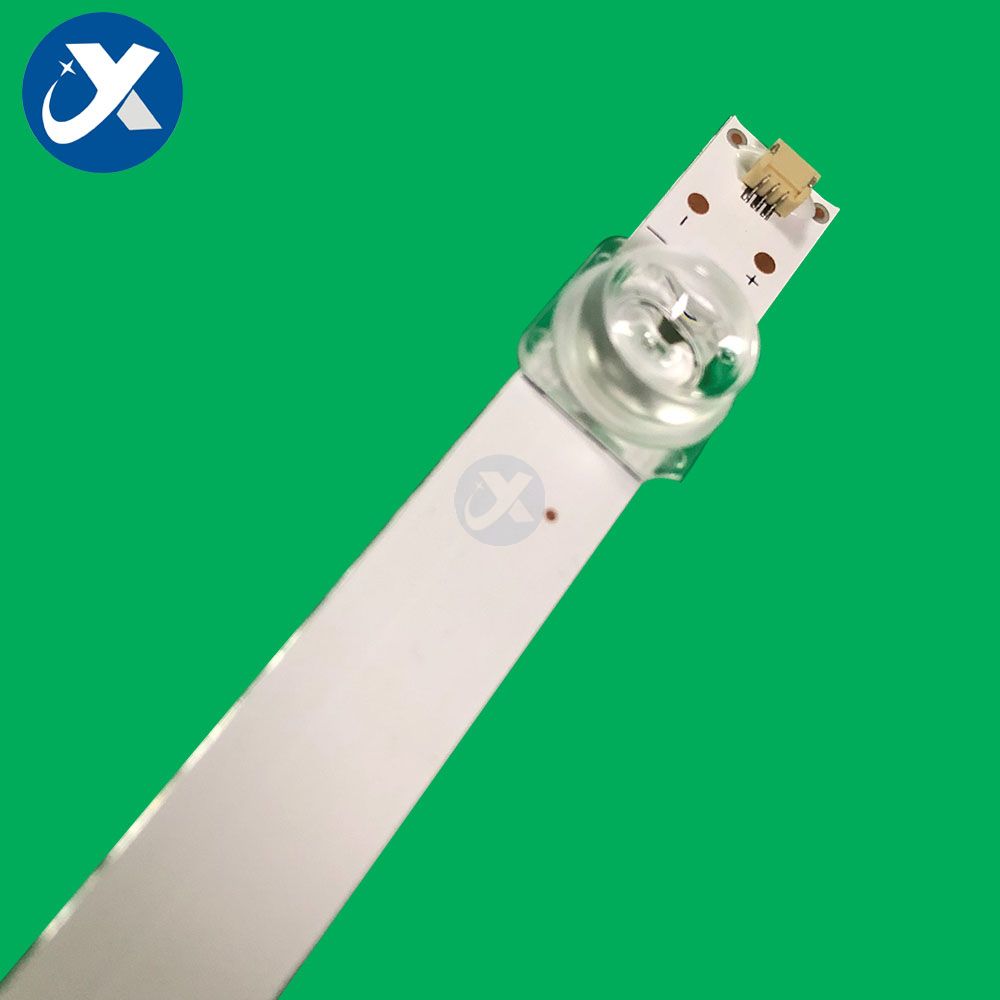

Item type | Hisense LC-58Q7330 LED Backlight |
Original code | JL.D580A1330-365AS-M-V02/1 |
Pcb Matetial | Aluminum |
Size | 1100mm |
LED Source | 3030 |
TV backlight lens | Original lens from Korea |
One complete set | 5 PCS/set |
Package | Packing with tray, Export carton |
Warranty | 1 year, if any problem, refund full |
Delivery | Sample 1-2days, mass order 3-15 days after payment confirmed |
1. 1:1 as original connectors
2. Original Korea lens
3. 1 OZ Aluminum PCB with V wear exposure technology
4. The lamp is 3V, power 1W, use 3030 EMC bracket
5. Original code:
JL.D580A1330-365AS-M-V02/1
CRH-BK58S13030T051087D-REV1.2
6. Quality warranty is 1 year, we refund fully there's any problem with the led strip lights
Part Number | CRH-BK58S13030T051087D-REV1.2 |
Board Number 1 | CRH-BK58S13030T051087D-REV1.2 |
Board Number 1 | JL.D580A1330-365AS-M-V02/1 |
Manufacture | Shenzhen Xieyuanxin Optoelectronics Co.,Ltd |
Part Type | LED Bar |
Part Usage | LED/LCD |
TV Panel Model | CV580U2-T01 |
Brand | Hisense | |||
TV model | Hisense LC-58Q7330 | Hisense HZ58A55 | Hisense 58H6550E | Hisense H58E3A |
Hisense HD580S1U91 | Hisense HD580S1US1 | Hisense LC-58Q7330U | Hisense LC-58Q620U |
