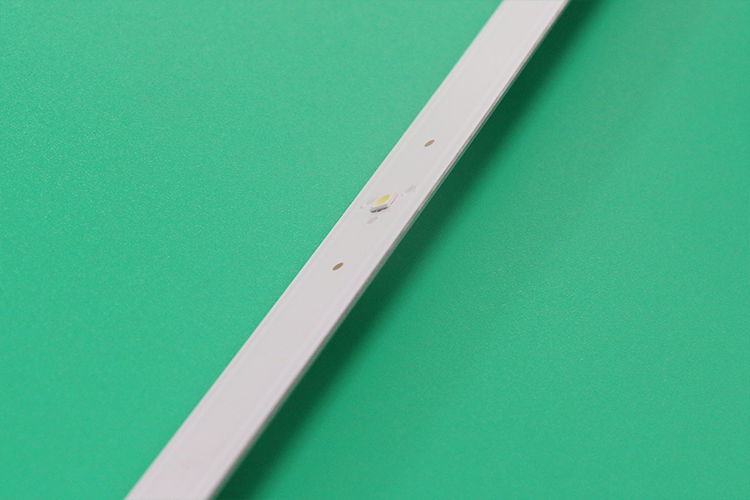

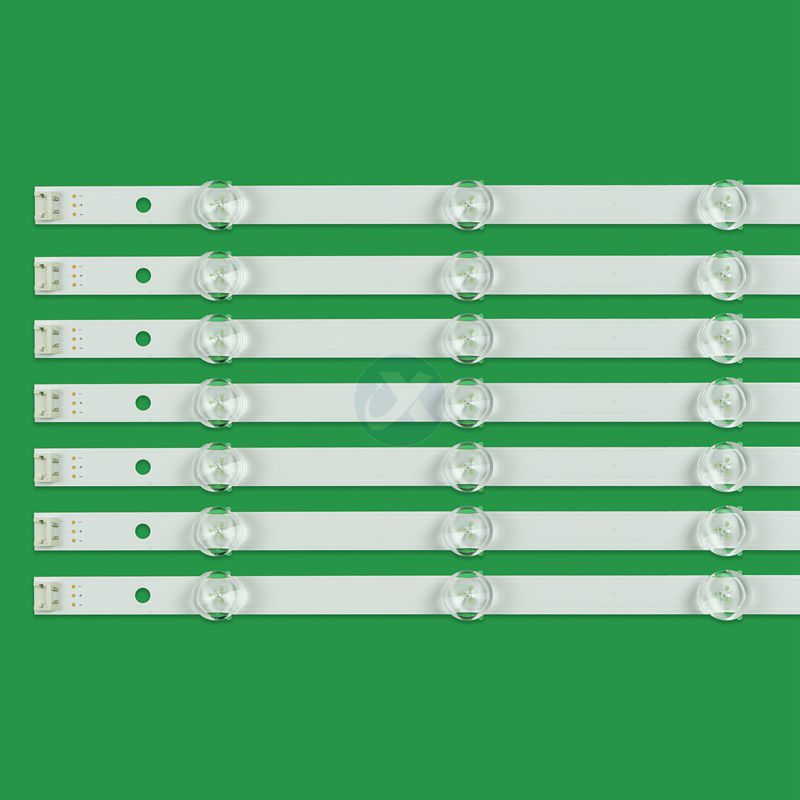

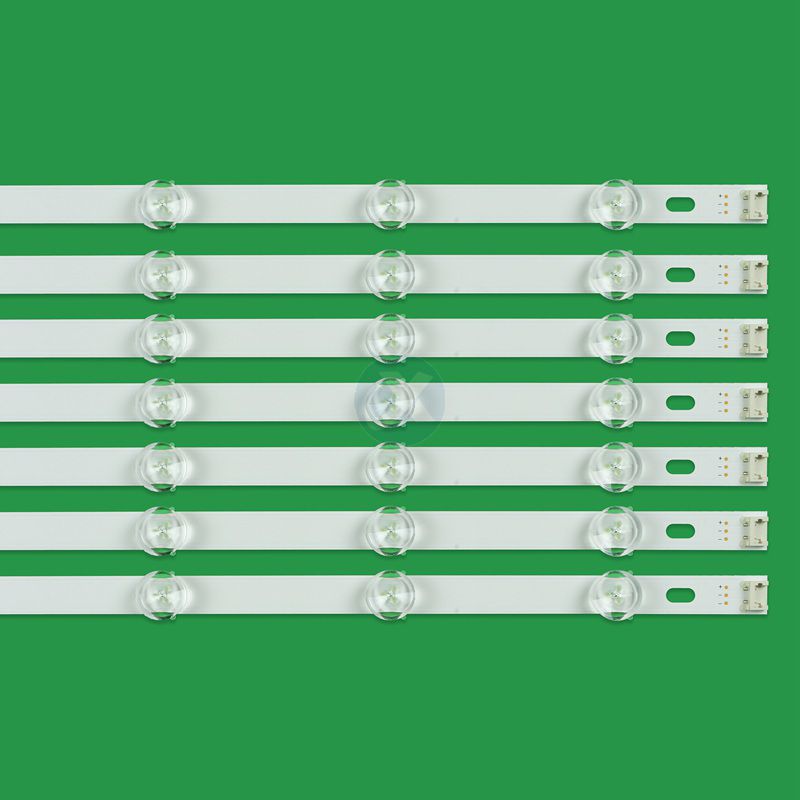

LG TV Backlight Bar 55 POLA

Item type	LG 55 POLA
Pcb Matetial	Aluminum
Size	R: 595mm12mm L: 548mm12mm
LED Source	3030/3535
TV backlight lens	Original lens from Korea
One complete set	6 pairs/set
Package	Packing with tray, Export carton
Warranty	1 year, if have problem, refund full
Delivery	Sample 1-2days, mass order 3-15 days after payment confirmed

Inquire Now Next Product

1. 1:1 connectors

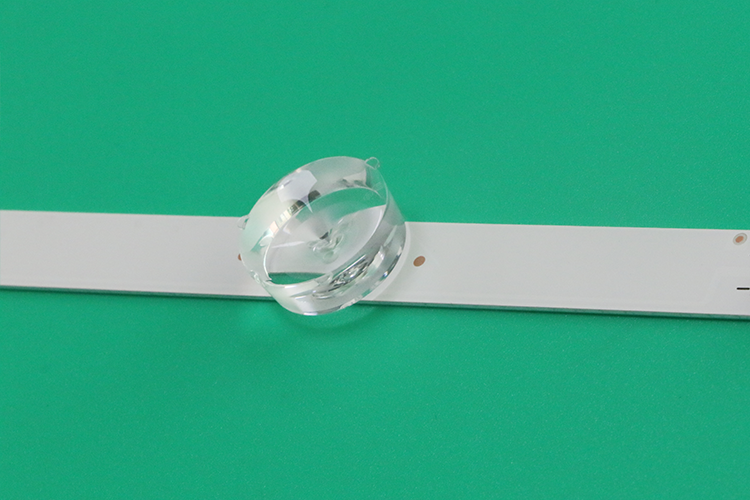

2. Original Korea lens

3. 1 OZ Aluminum PCB with V wear exposure technology

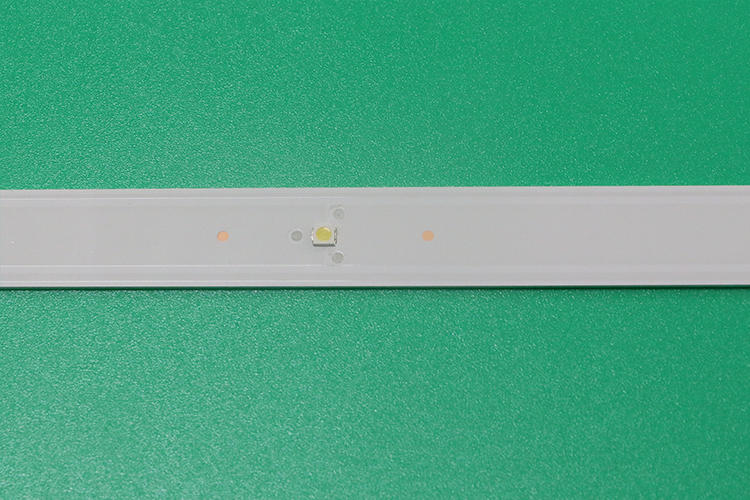

4. The lamp is 6V, power 2W, use 3030 EMC bracket

5. Quality warranty is 1 year, we refund fully there's any problem with the led strip lights.

6. Working life time is 50000hours

Size：R: 595mm*12mm L: 548mm*12mm

TV Panel Model：TV Panel Model

55LN5788-ZE , 55LN578S-ZE , 55LA613S-ZB , 55LA6134-ZB , 55LA6136-ZB , 55LN5400-ZA , 55LN5403-ZA

LG TV Backlight Bar 55 POLA

Part Number 1	LA62M55T120V12 LED Strips LN54M550060V12 LED Strips
Part Number 2	NC550DUN-SAAP1 LED Strips
Board Number 1	A: LG INNOTEK POLA2.0 55'' R TYPE REV 0.1 2012.10.18
Board Number 1	B: LG INNOTEK POLA2.0 55'' L TYPE REV 0.1 2012.10.18
Manufacture	LG
Part Type	LED Bar
Part Usage	LED/LCD
TV Panel Model	NC550DUN-SAAP1, LA62M55T120V12, LN54M550060V12, LN51M550060V12

Brand	Models					Versions
LG	55LN5310	55LN5400	55LN5600	55LN6200	55LN5700
	55LN575V-ZE	55LN575S-ZE 55LN570V-ZE	55LN570S-ZE	55LN5708-ZE	55LN570U-ZA
	55LN570V-ZA	55LN570R-ZA	55LN570S-ZA 55LN5757-ZE	55LN575R-ZE	55LN575U-ZE
	55LN613V-ZB	55LA613V-ZB	55LN578V-ZE	55LN6108-ZB 55LN610S-ZB	55LN610V-ZB
	55LN6138-ZB	55LN613S-ZB	55LN5778-ZK	55LN577S-ZK	55LN577V-ZK
	55LN5788-ZE	55LN578S-ZE	55LA613S-ZB	55LA6134-ZB	55LA6136-ZB
	55LN5400-ZA	55LN5403-ZA 55LN5404-ZA	55LN5405-ZA	55LN5406-ZA	55LN540B-ZA
	55LN540R-ZA	55LN540S-ZA	55LN540U-ZA 55LN540U-ZB	55LN540V-ZA	55LN541U-ZB
	55LN541V-ZC	55LN555V-ZD	55LA6200-CN	55LA6208 55LA620S	55LN549E-UA
	55LN541C-UA	55LA6205-UA	55LA6130-ZB	55LA613V-ZA	55LA613S-ZA
	55LN5707-ZA	55LN5708-ZA	55LA613V-ZF	55LA613V-ZG	55LA6150-ZB
	55LA6154-ZB	55LA6156-ZB 55LA615S-ZA	55LA615S-ZB	55LA615V-ZA	55LA615V-ZB
	55LA615V-ZE	55LA615V-ZF	55LA616V-ZG 55LN5757-ZE55LA6208-ZA	55LA620S-ZA	55LA620V-ZA
	55LA6218-ZD	55LA621S-ZD	55LA621V-ZD 55LN5100-UB BUSYLJR	55LN5100-UB BUSVLMR	55LN5200-UB BUSULMR
	55LN5200-UB	BUSULJR	55LN5200-UB BUSVLMR	55LN5400-UA BUSULJR	55LN5400-UA BUSULHR
	55LN5400-UA BUSZLJR 55LN5600-UI BUSULUR	55LN5700-UH BUSULJR	55LN5700-UH BUSULHR	55LN5710-UI BUSULHR	55LN5710-UI BUSULJR
	55LN5750-UH BCCULJR	55LN5790-UI BUSULJR	55LA6200-UA BUSULJR 55LN5758-ZE	55LA6200-UA BUSULHR	55LA6205-UA BCCULJR.
