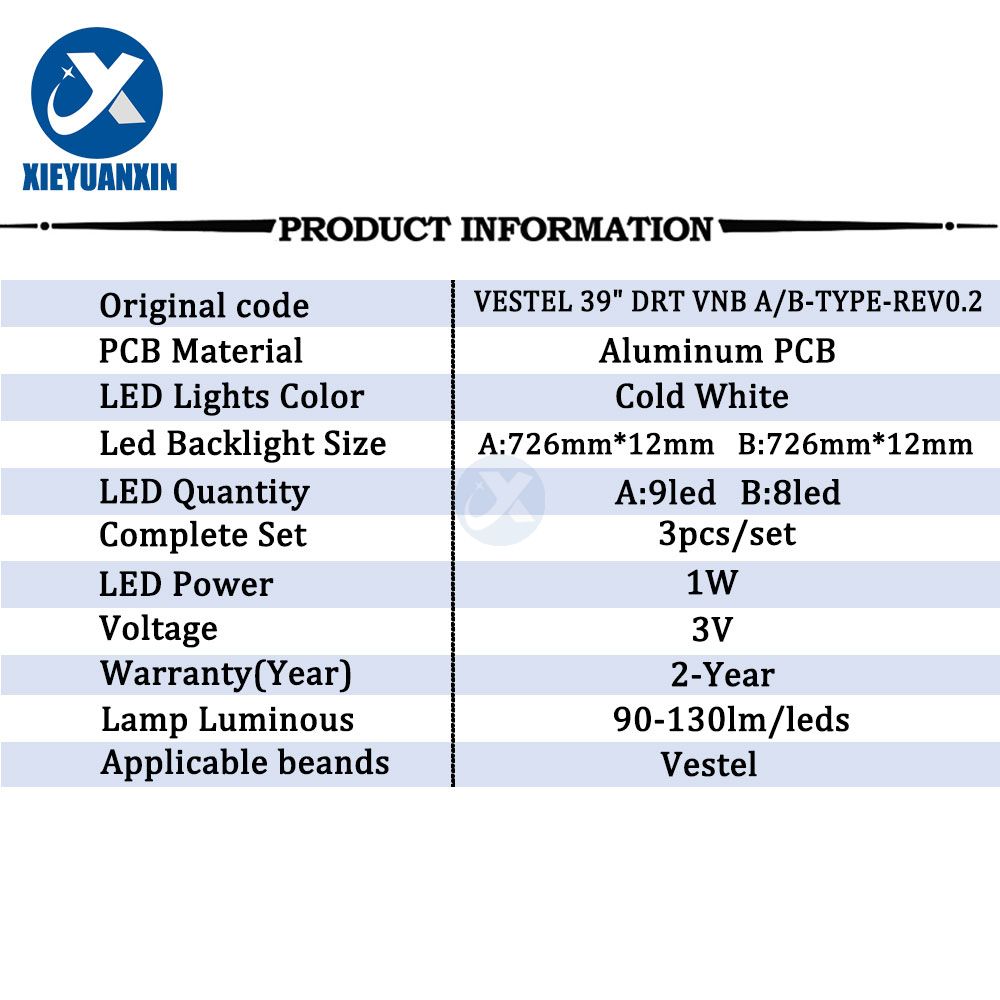

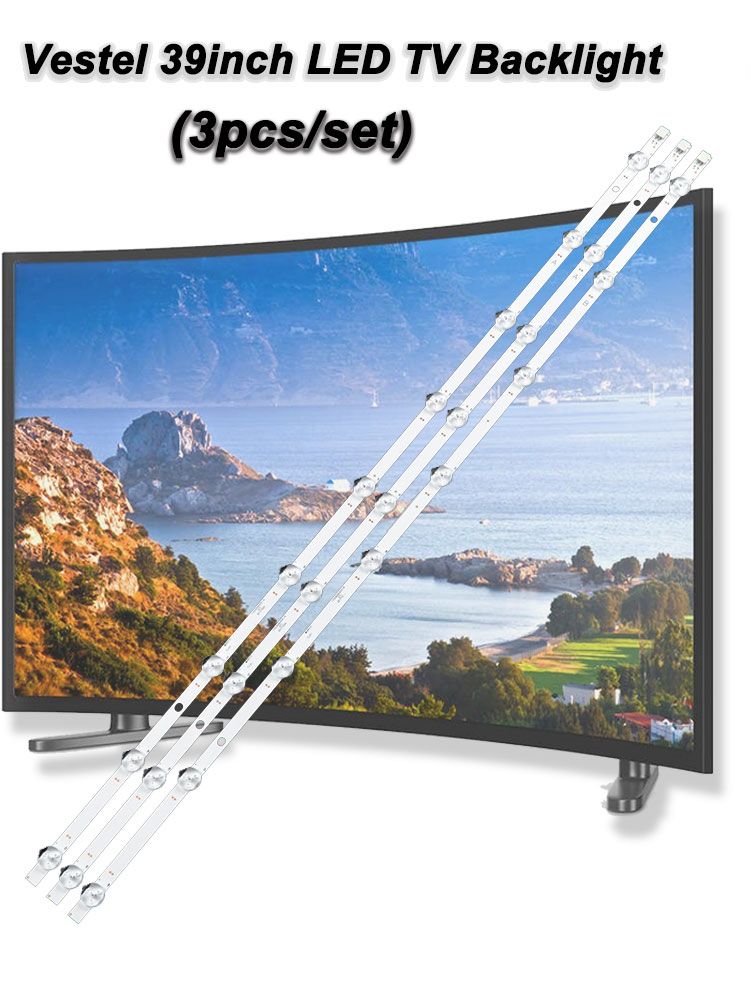

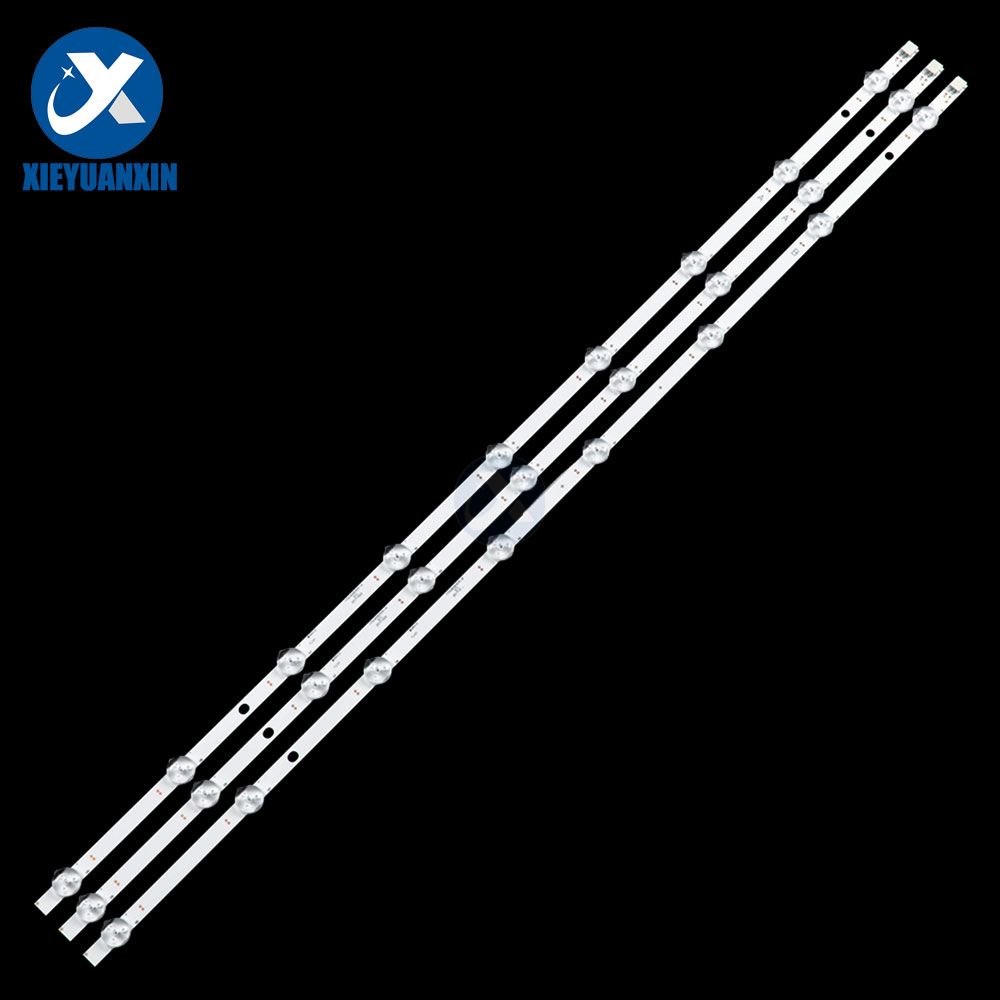

VESTEL 39" DRT VNB A-TYPE-REV0.2 VESTEL 39" DRT VNB B-TYPE-REV0.2 39inch A:728mm 9led B:728mm 8led 3V1W 8+9led 3pcs/set LED TV Backlight Strip XY-0669-SET

MODEL:Vestel 39inch 8+9led

length:

A:728mm 9led

B:728mm 8led

Line width:10mm

SET:3pcs/set

Voltage:3V1W

Total voltage:

8LED:24V

9LED:27V

Compatible screen model:LUX01390001

The distance between the centers of the LEDs:

A型：84MM

B型：98-99-99-80-99-99-98MM

Substrate material:Aluminum

Type of light diffuser:17 mm VESTEL 39" DRT VNB A-TYPE-REV0.2 VESTEL 39" DRT VNB B-TYPE-REV0.2 39inch A:728mm 9led B:728mm 8led 3V1W 8 9led 3pcs/set LED TV Backlight Strip XY-0669-SET

Inquire Now Next Product

Products Detail
Parts No.
TV Models
Videos

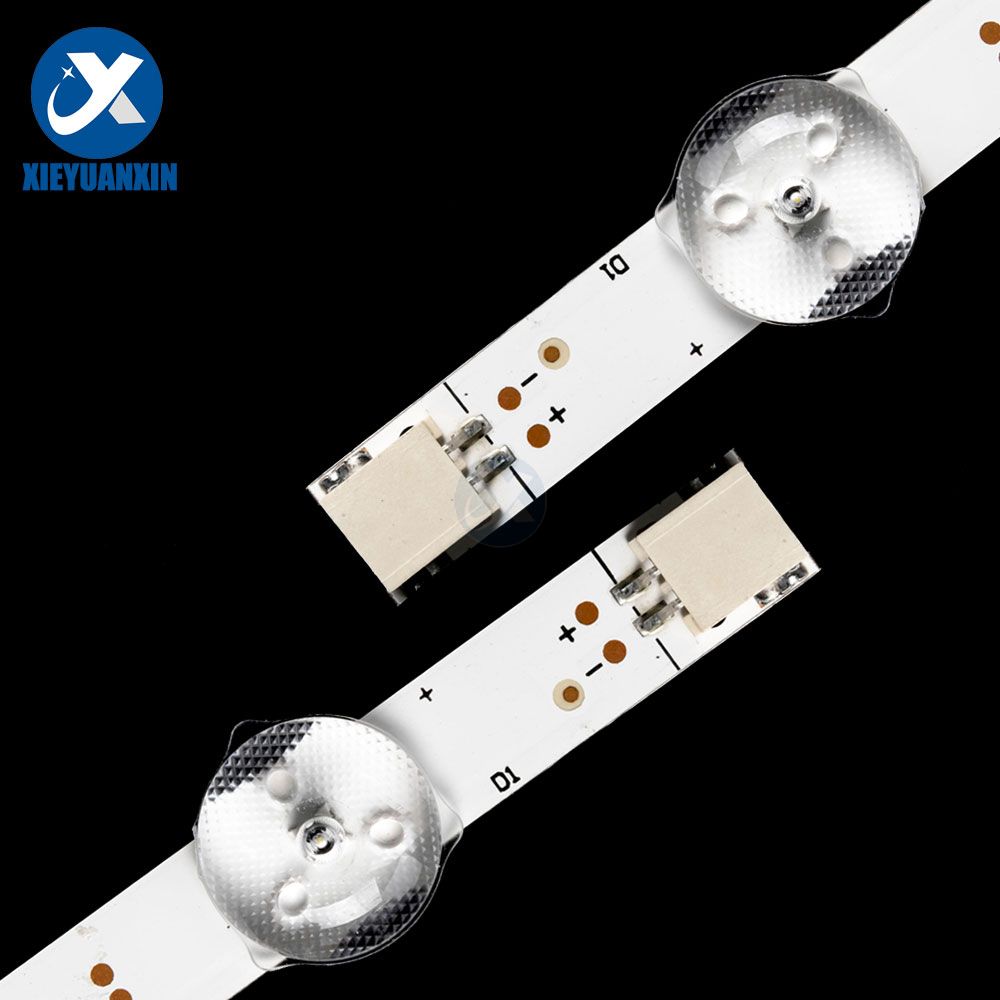

【About The Connector】:

1：1 As Original Connectors.

【About Lamp Beads】:

Original Korea Lens.

【About Quality & Workmanship】:

1 OZ Aluminum PCB With V Cut Smooth Edge Technology.

【Transaction Guarantee】:

We provide 1 year after-sales warranty. We will provide after-sales warranty for losses caused by non-human reasons.

VESTEL 39" DRT VNB A-TYPE-REV0.2

VESTEL 39" DRT VNB B-TYPE-REV0.2

FIN39FHD440BK VES390UNDA-2D-N12

T390HVN04.0，LT-39C770，40FB5050
